Specification
● Input Voltage: AC90-240V 50-60Hz
● Lamp Source: 420W / 550W Philips Lamp or Oxtail Lamp
● Control Mode: DMX 512,Master/Slave, Sound Activated and Auto
● Control Channel: 16 DMX Channels
● Power Consumption: 550W/ 650W
● Dimensions: 340x380x620mm
● Net Weight: 18.50Kg
● Gross Weight: 20.0Kg
Feature
● High Brightness 420W / 550W Philips Lamp or Oxtail Lamp engine
● 540° Pan Movement,270° Tilt Movement, 16 bit smooth and precise
resolution for PAN/TILT movement
● 1 Color Wheel with 14 colors + White, linear color conversion and
bidirectional variable speed rotating rainbow effect, half color effect
● 1 Fixed Gobo Wheel with 13 gobos + White, variable speed jitter and
bidirectional flow effect
● 2 independent rotating prisms, 8-facet prism and 8+16+24-Facet
Honeycomb Prism,The two prisms can be overlaid and are rotatable in
either direction for amazing lighting effects.
● 7-Rainbow Color Effect, Electric frost 、Focus、Shutter
● 0-100% Linear dimmer adjustment
● 16 DMX Channels USITT DMX-512
●IP20 Protection Level, with Rain Cover protection level up to IP44

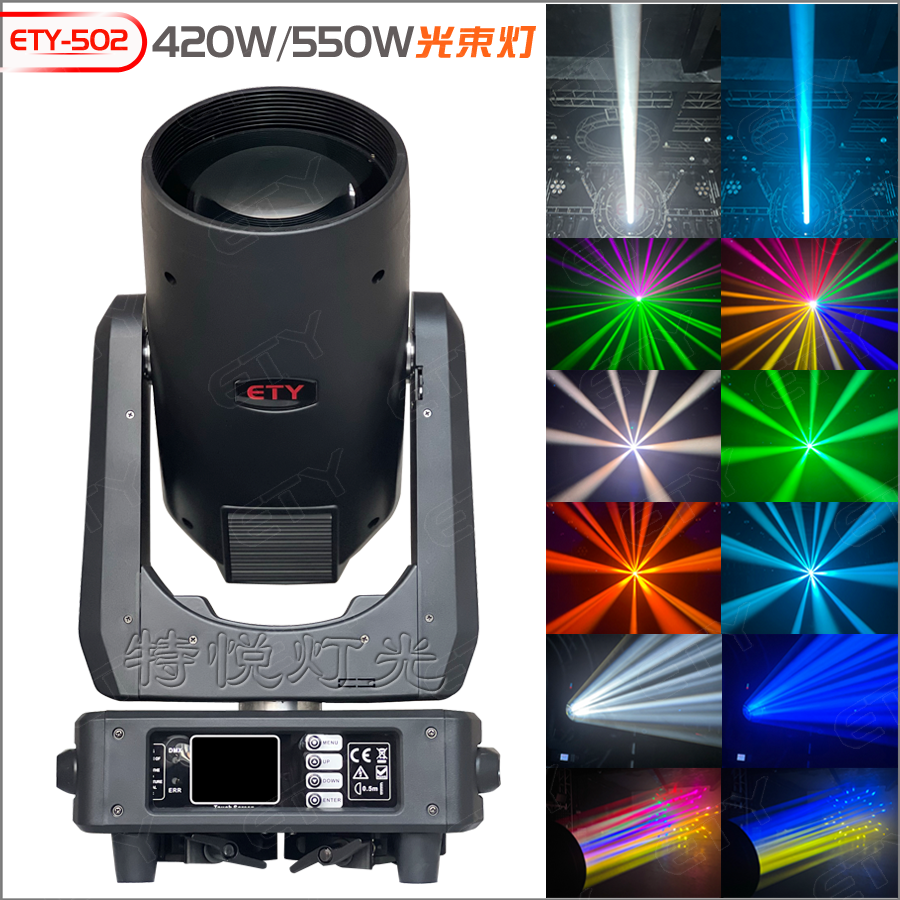

High Output BEAM Moving Head Light for Stage Productions
